RJ45 Pinout Diagrams
RJ45 PINOUT T-568A
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|
| TX+ | TX- | RX+ | TRD2+ | TRD2- | R- | TRS3+ | TRS3- |
| White Green | Green | White Orange | Blue | White Blue | Orange | White Brown | Brown |

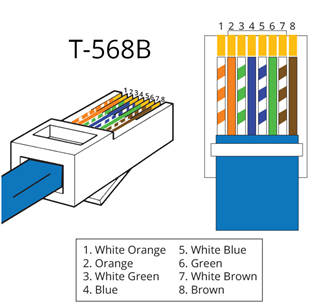

RJ45 PINOUT T-568B
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|
| TX+ | TX- | RX+ | TRD2+ | TRD2- | R- | TRS3+ | TRS3- |
| White Orange | Orange | White Green | Blue | White Blue | Green | White Brown | Brown |
